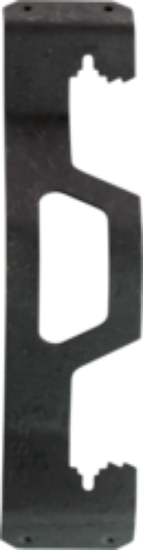

Conduit Clip

Fast Support Conduit Clip for Wire, Rod or Flange , Fits 1" EMT to #8 Wire thru 1/4" Rod or 1/8 thru 1/4" Flange, Fits 3/4" EMT to 5/16" thru 1/2" Flange, Spring Steel
SKU: FS3
Product Status: Active
UPC: 78461080053
UNSPSC: 31162305
Country of Origin: USA
Packaging: Corrugated
Package Quantity: 100
Master Carton Quantity: 100
Products specifications
Brand NameMinerallac
Sub Brand Blackclaw
MaterialSpring Steel
FinishBlack Phosphate
ColorBlack
Load CapacityVertical Wire: 50 LBS; Vertical Flange: 25 LBS; Horizontal Flange: 100;
Clip TypeBatwings
Wire Range#8 – 1/2"
Flange Range1/8" – 1/2"
Rod Range1/2" – 3/4"
TypeConduit Clip
Size4.350" x 1.250" x 0.750"
Width1.250"
Thickness0.035"
ApplicationElectrical Conduit/Cable
Length4.350"
Product compliance
Buy America ActYes
Buy American ActYes
FTC CompliantNO
RoHSYes
SDS4
Prop65 Compliance

This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation.
