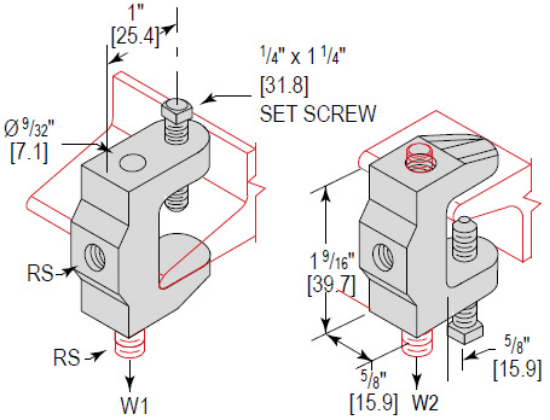

Beam Clamp

Beam Clamp Universal Malleable Iron 5/8" Flange 1/4" Rod Size, Zinc Plated

SKU: BCUBM25EG

Product Status: Active

UPC: 78461000146

UNSPSC: 31162905

Country of Origin: CHINA

Packaging: Corrugated

Package Quantity: 100

Master Carton Quantity: 100

Products specifications

Brand Name	Minerallac
Sub Brand	Strut Fittings
Material	Steel
Finish	Electro-galvanized
Width	5/8"
Rod Size	1/4"-20
Max. Load W1	100 lbs.
Max. Load W2	250 lbs.
Note	Do not over tighten set screw
Max. Flange Thickness	5/8"
Height	1-9/16"
Set Screw	1/4" x 1-1/4"

Download Spec Sheet

Product compliance

Buy America Act	NO
Buy American Act	NO
FTC Compliant	NO
RoHS	Yes
SDS	4

Prop65 Compliance

⚠ WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov.
