Lectra-Stop™

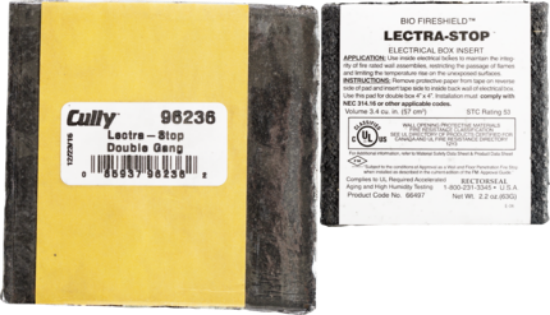

Lectra-Stop™ Double Gang, 1ct

SKU: 96236

Product Status: Active

UPC: 08593796236

UNSPSC: 31201605

Country of Origin: USA

Packaging: N/A

Unit of Measure: EA

Package Quantity: 1

Master Carton Quantity: 50

Brand Name	Minerallac
Sub Brand	Cully
Type	Electrical Box Fire-rated Insert
Description	Is a single component fire rated insert for use with electrical boxes. It is inserted on the inside back wall of an electrical box, and is a highly intumescent firestop material. When exposed to fire, the box guard expand forming a char that will seal off the opening and prevent the spread of flames and limit the temperature rise on the unexposed surfaces.
Application	Easy to install by hand, use guard boxes on the inside back panel of metallic electrical boxes to maintain the integrity of fire rated wall assemblies restricting the passgae of flames and limiting the temperature rise on the unexposed surfaces. When used as directed, the horizontal separtion between outlet boxes on opposite sides of the wall may be less than 24 inches
Characteristics/ Features	East to install, cost effective, highly intumescent, adheres to back of electrical box, non-conductive, dielectric breakdown voltage 22V/mil (ASTM D149), STC rating 53
Size	3-3/4" x 3-11/16" x 1/4" (Double Gang)

This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation.
