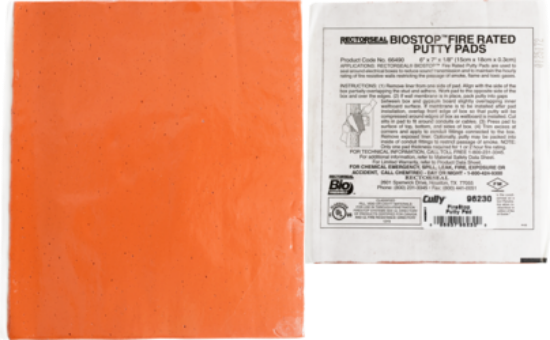

Putty Pad

Firestop Putty Pad, 6 x 7 x 1/8", Covers Two (2) Gang Boxes; STC Rating 60

SKU: 96230

Product Status: Active

UPC: 08593796230

UNSPSC: 46191503

Country of Origin: USA

Packaging: N/A

Package Quantity: 1

Master Carton Quantity: 20

Brand Name	Minerallac
Sub Brand	Cully
Type	Fire Pad
Color	White
Size	6" x 7" x 1/8"
Container	Plastic
Work Life	One pad thickness provides a 1 to 2 hour fire rating.
Sub Brand	Cully
Description	Is a moldable non-curing one component fire rated material for through-penetration firestop systems. The Putty will intumesce when heated, forming an insulating char. In the event of a fire, the putty will prevent the spread of flames, smoke, gas and water through penetration openings. Easily applied by hand, no tools or mixing required.
Applications	Use Fire Rated Putty Pads for various penetrations: small openings, EMT Pipe, Steel, Conduit, and Cabling, (Telephone, Power, Communications), metal or non-metallic electrical boxes, large steel boxes and junction boxes. UL approved designs Putty Pads with FRM Mortar designs to help provide a barrier or buffer for energized bus ducts or conduits as well as provide a barrier from vibration and movement
Characteristics/ Features	Expands when exposed to fire, no volatile solvents, no asbestos fillers, single component, applied by hand, adheres to all common building surfaces, STC rating 60-Pads
Flame Spread	10
Smoke Index	125
Special Features	Covers Two Gang Boxes; STC Rating 60

This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation.
