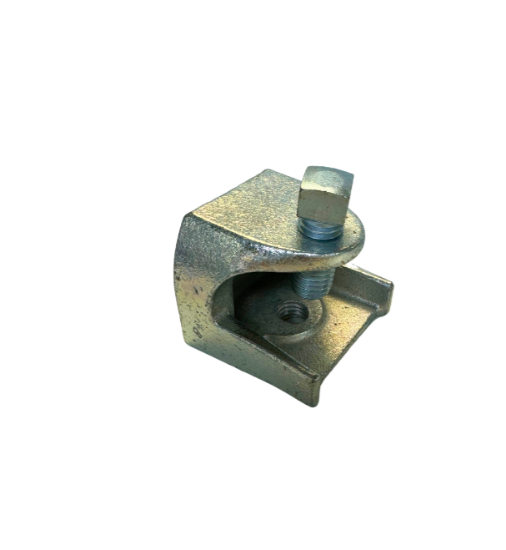

Beam Clamp

Set Screw Beam Clamp (Malleable Iron), Fits Up to 7/8" Flange, 1/2"-13 Tapped Holes Bottom and Back of Beam Clamp, Zinc Plated

SKU: 703

Product Status: Active

UPC: 78461024703

UNSPSC: 31162905

Country of Origin: USA

Packaging: Corrugated

Package Quantity: 25

Master Carton Quantity: 25

Brand Name	Minerallac
Sub Brand	Minerallac Traditional
Type	Beam Clamp
Application	For use with conduit hangers, bridle rings, and drop rods 3/8" to 1/2".
Special Features	Case hardened steel set screw tapped at an angle locks on beam.
Material	Mallable Iron
Finish	Zinc Plated
Clip Type	Flange Clamp
Color	Silver
Rod Size	1/2"
Material Of Construction	Mallable Iron
Static Load Limit (Bottom Hole Only)	900 lbs
Size	2.16" x 2.48" x 2.63"
Torque Rating	250
Length	2.48"
Width	2.63"
Maximum Clamp Diameter	7/8"
Set Screw	5/8"-11
Flange Width	7/8"

This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation.
