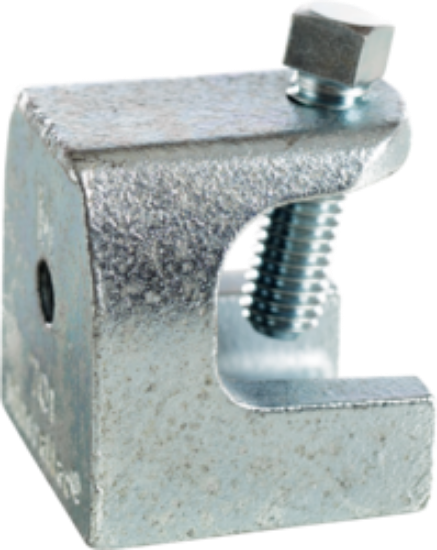

Beam Clamp

Set Screw Beam Clamp (Malleable Iron), Fits Up to 3/4" Flange, 3/8"-16 Tapped Holes Bottom and Back of Beam Clamp, Zinc Plated

SKU: 702
Product Status: Active
UPC: 78461024702
UNSPSC: 31162905
Country of Origin: USA
Packaging: Corrugated
Package Quantity: 25
Master Carton Quantity: 25
Products specifications
Brand NameMinerallac
Sub Brand Minerallac Traditional
TypeBeam Clamp
ApplicationFor use with conduit hangers, bridle rings, and drop rods 3/8" to 1/2".
Special FeaturesCase hardened steel set screw tapped at an angle locks on beam.
MaterialMallable Iron
FinishZinc Plated
Clip TypeFlange Clamp
ColorSilver
Flange Width3/4"
Rod Size3/8"
Material Of ConstructionMallable Iron
Size1.80" x 2.00" x 1.90"
Width1.90"
Maximum Clamp Diameter3/4"
Set Screw1/2"-13
Static Load Limit (Bottom Hole Only)750 lbs
Torque Rating125
Length2.00"
Product compliance
Buy America ActNo
Buy American ActNo
FTC CompliantNo
RoHSYes
Prop65 Compliance

This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation.
