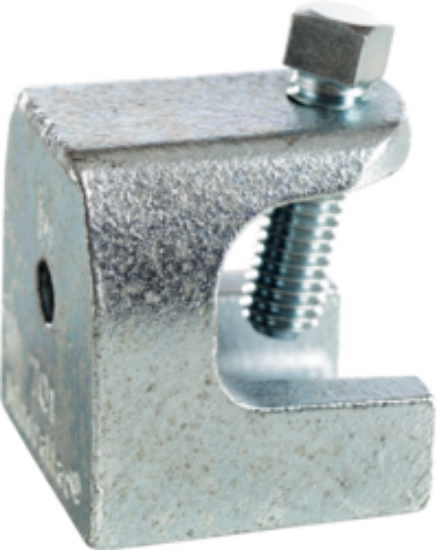

Beam Clamp

Set Screw Beam Clamp (Malleable Iron), Fits Up to 3/4" Flange, 5/16"-18 Tapped Holes Bottom and Back of Beam Clamp, Zinc Plated

SKU: 701

Product Status: Active

UPC: 78461024701

UNSPSC: 31162905

Country of Origin: USA

Packaging: Corrugated

Package Quantity: 25

Master Carton Quantity: 25

Brand Name	Minerallac
Sub Brand	Minerallac Traditional
Type	Beam Clamp
Application	For use with conduit hangers, bridle rings, and drop rods 3/8" to 1/2".
Special Features	Case hardened steel set screw tapped at an angle locks on beam.
Material	Mallable Iron
Finish	Zinc Plated
Clip Type	Flange Clamp
Color	Silver
Rod Size	5/16"
Material Of Construction	Mallable Iron
Size	1.70" x 1.63" x 1.58"
Width	1.58"
Maximum Clamp Diameter	3/4"
Set Screw	3/8"-16
Flange Width	3/4"
Static Load Limit (Bottom Hole Only)	525 lbs
Torque Rating	60 lbf-in
Length	1.63"

This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation.
