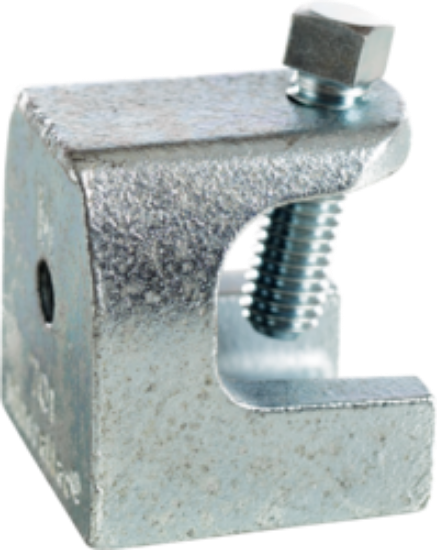

Beam Clamp

(Malleable Iron)M6 Set ScrewBeam Clamp (Malleable Iron), up to 3/4" flange, 6 mill tapped holes bottom and back of beam clamp, zinc plated

SKU: 700M6

Product Status: Active

UPC: 78461002385

UNSPSC: 31162905

Country of Origin: USA

Packaging: Corrugated

Unit of Measure: C

Package Quantity: 50

Master Carton Quantity: 50

Brand Name	Minerallac
Sub Brand	Minerallac Traditional
Type	Beam Clamp
Application	For use with threaded rod, conduit hangers and bridal rings.
Special Features	Case hardened steel set screw tapped at an angle locks on beam.
Material	Malleable Iron
Maximum Jaw Opening	5/8"
Size	1.40" x 1.10" x 1.38"
Finish	Zinc Plated
Torque Rating	60
Clip Type	Flange Clamp
Length	1.10"
Width	1.38"
Color	Silver
Flange Width	5/8"
Rod Size	1/4"
Static Load Limit (Bottom Hole Only)	275 lbs
Set Screw	#6 metric

This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation.
