Rod Hanger

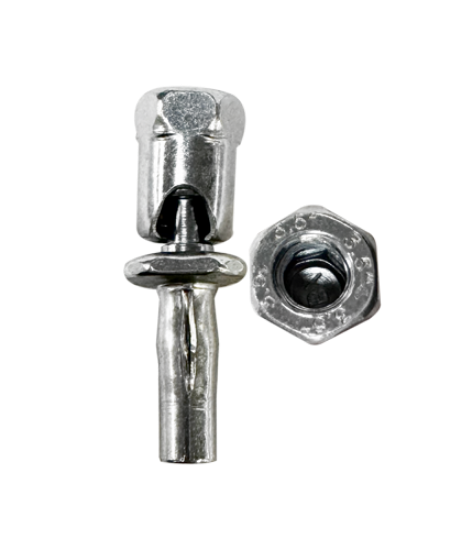

ITW Sammys® SXP 35 SWIVEL X-PRESS for 22g.-0.125" Purlin, 89° Max Swivel Mounting, 3/8" Rod, Model #SXP 35, Zinc Plated, 125ct Box

SKU: 61204BFG

Product Status: Active

UPC: 08593705415

UNSPSC: 31161502

Country of Origin: USA

Packaging: Corrugated

Unit of Measure: C

Package Quantity: 125

Master Carton Quantity: 125

Brand Name	Minerallac
Sub Brand	Cully
Special Features	One-step installation process reduces installtion time and cost.
Application	Use in applications where access to the back of the installed fastener is prohibited, ie. Metal roof deck, tubular steel, or vapor barrier fabric
Material	Steel
Substrate	Metal Deck
Mounting	Swivel
Head Color	Silver
Finish	Electro-Zinc
Rod Size	3/8"
Max Swivel Degrees	89°
Ultimate Pullout (lbs)	1675 (16 ga Vert) 1558 (89° Off Vert)
Type	SXP 35 SWIVEL X-PRESS Sammy's threaded rod anchor for Purlin 3/8" rod

This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation.
