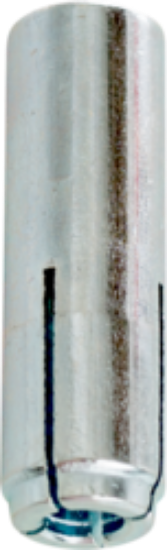

Drop-In Anchor

5/8-11 x 2-1/2" Steel Drop-In Anchors, Includes Setting Tool, Zinc Plated,Jar

SKU: 60408USJ

Product Status: Active

UPC: 08593705812

UNSPSC: 31161601

Country of Origin: USA

Packaging: Jar

Package Quantity: 25

Master Carton Quantity: 150

Brand Name	Minerallac
Sub Brand	Cully
Type	Drop-In Anchor
Special Features	Can also be used to anchor handrails and floor-mounted door stops.
Application	Intended for flush mounted, medium to heavy-duty applications in solid materials such as stone and concrete. It can be used in, but are not limited to, overhead assemblies such as duct work and pipe hangers because the internal plug holds its position.
Material	Steel
Finish	Zinc Plated
Length	2.500"
Diameter	5/8"
Thread	11
Sub Brand	Cully
Uses	Suspending conduit, concrete formwork, fire sprinkler supports, pipe supports, cable trays and strut, suspended lighting
Outside Diameter	7/8"
Overall Length	2-1/2"
Minimum Embedment Depth	2-1/2"
Rod/ Anchor Size	5/8"
Ultimate Load Capacities (2000 PSI Concrete)	4,665 lbs Tension, 12,380 lbs Shear
Allowable Load Capacities (2000 PSI Concrete)	1,165 lbs Tension, 3,095 lbs Shear

This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation.
