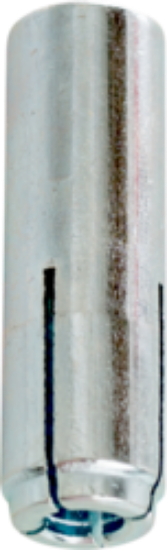

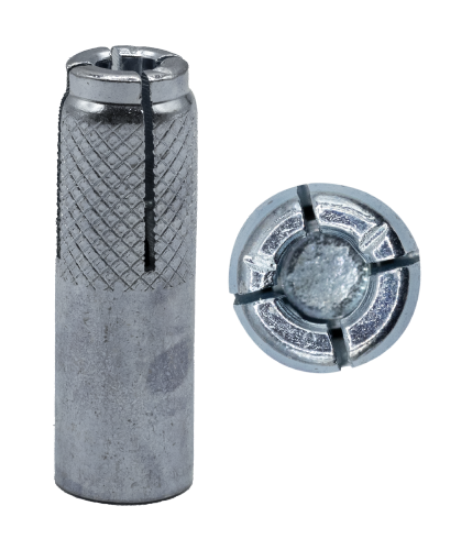

Drop-In Anchor

1/2-13 x 2" Steel Drop-In Anchors, Includes Setting Tool, Zinc Plated,Jar

SKU: 60406USJ

Product Status: Active

UPC: 08593705808

UNSPSC: 31161601

Country of Origin: USA

Packaging: Jar

Package Quantity: 50

Master Carton Quantity: 300

Brand Name	Minerallac
Sub Brand	Cully
Type	Steel Drop-In Achor
Size	1/2-13 x 1-9/16"
Diameter	0.375"
Length	1.563"
Minimum Embedment Depth	1.625"
Thread Type	Internal Threads
Thread Length	0.625"
Thread per Inch	16
Drill Size	1/2"
Material	Steel
Finish	Zinc Plated
Application	Steel Drop-In Anchor is an all steel anchor for us in solid concrete, lightweight concrete, and concrete-filled steel deck members. THe anchors can also be considered for hand stone and solid block base materials.
Uses	Suspending conduit, concrete formwork, fire sprinkler supports, pipe supports, cable trays and strut, suspended lighting
Overall Length	2"
Outside Diameter	5/8"
Ultimate Load Capacities (2000 PSI Concrete)	4,105 lbs Tension, 6,400 lbs Shear
Rod/ Anchor Size	1/2"
Allowable Load Capacities (2000 PSI Concrete)	1,025 lbs Tension, 1,600 lbs Shear

This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation.
