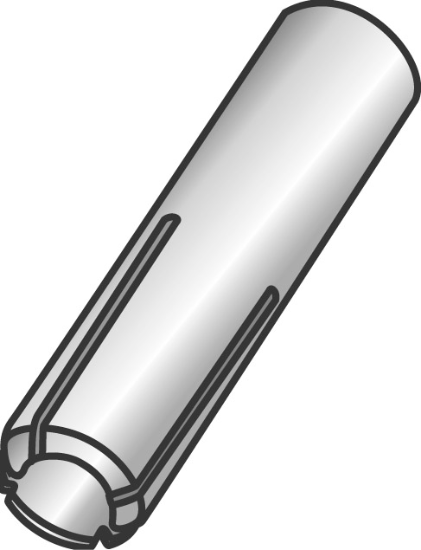

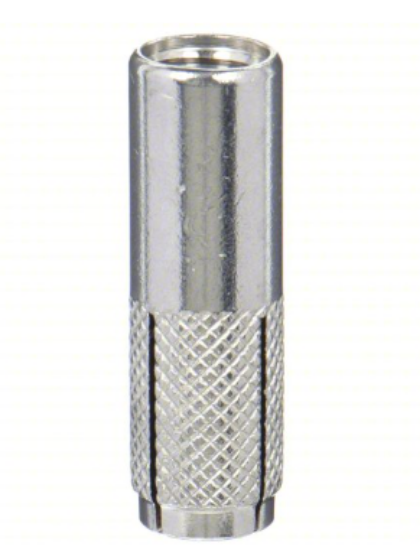

Drop-In Anchor

1/2"-13 Drop-In Anchor, Drill Bit Dia. 5/8", Anchor Length 2", Type 316 Stainless Steel,Jar

SKU: 60406SS316J

Product Status: Active

UPC: 08593703979

UNSPSC: 31161601

Country of Origin: TAIWAN

Packaging: Jar

Package Quantity: 50

Master Carton Quantity: 300

Brand Name	Minerallac
Sub Brand	Cully
Type	Steel Drop-In Anchor
Application	Steel Drop-In Anchor is an all steel anchor for us in solid concrete, lightweight concrete, and concrete-filled steel deck members. The anchors can also be considered for hand stone and solid block base materials.
Uses	Suspending conduit, concrete formwork, fire sprinkler supports, pipe supports, cable trays and strut, suspended lighting
Material	316 Stainless Steel
Rod/ Anchor Size	1/2"
Overall Length	2"
Outside Diameter	5/8"
Minimum Embedment Depth	2"
Allowable Load Capacities (2000 PSI Concrete)	1,025 lbs Tension, 1,600 lbs Shear
Ultimate Load Capacities (2000 PSI Concrete)	4,105 lbs Tension, 6,400 lbs Shear

This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation.
