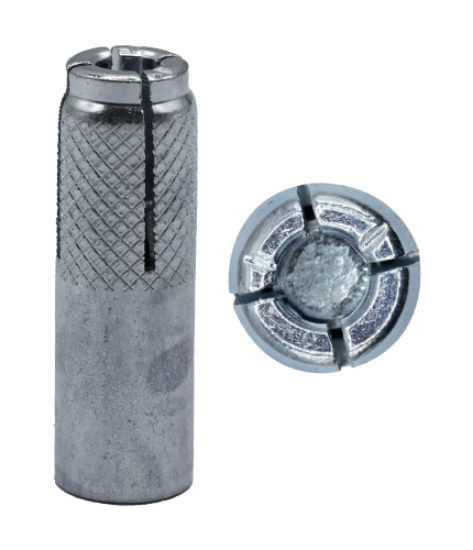

Drop-In Anchor

1/2-13 x 2" Steel Drop-In Anchors, Includes Setting Tool, Zinc Plated,Jar

SKU: 60406J

Product Status: Active

UPC: 08593708283

UNSPSC: 31161601

Country of Origin: CHINA

Packaging: Jar

Package Quantity: 50

Master Carton Quantity: 300

Brand Name	Minerallac
Sub Brand	Cully
Material	Steel
Finish	Zinc Plated
Length	1/2"
Diameter	5/8"
Thread	13
Minimum Embedment Depth	2"
Minimum Concrete Compressive Strength	4,000
Ultimate Tension/lbs	2,900
Shear/lbs	4,680
Minimum Concrete Compressive Strength	2,000
Type	Drop-In Anchor
Special Features	Can also be used to anchor handrails and floor-mounted door stops.
Application	Intended for flush mounted, medium to heavy-duty applications in solid materials such as stone and concrete. It can be used in, but are not limited to, overhead assemblies such as duct work and pipe hangers because the internal plug holds its position.
Tension Strength	4,630 lbs in 2000 psi concrete
Ultimate Tension Strength	1018lbs in 2000psi normal weight concrete. 2900lbs in 4000psi normal weight concrete
Shear Strength	4,680 lbs in 2000 psi concrete

This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation.
