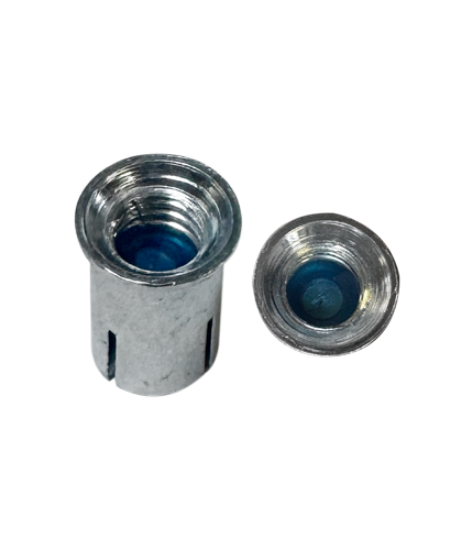

Drop-In Anchor

3/8-16 Shallow Embedment Steel Drop-In Anchors, Includes Setting Tool, Zinc Plated,Jar

SKU: 60405J

Product Status: Active

UPC: 08593702909

UNSPSC: 31162101

Country of Origin: CHINA

Package Quantity: 100

Master Carton Quantity: 600

Brand Name	Minerallac
Sub Brand	Cully
Type	Mini Dropin expansion anchor
Application	A carbon steel machine bolt anchor designed for use in shallow embedment applications.
Material	Zinc Plated Carbon Steel
Suitable Base Materials	Normal Weight Concrete, Lightweight Concrete, Precast Hollow Core Plank, and Concrete Over Steel Deck
Benefits/ Features	Interally threaded anchor for easy bolt removability and service work, ideal for precast hollow core plank and post-tensioned concrete slabs, lip provides flush installation and consistent embedment, Manual setting tool scores flange when set to verify proper expansion depth
Rod/ Anchor Diameter	3/8"
Outside Diameter	1/2"
Overall Length	3/4"
Minimum Embedment Depth in.	3/4"
Ultimate Load Capacities (3000 PSI Concrete)	1980 lbs Tension, 2700 lbs Shear
Allowable Load Capacities (3000 PSI Concrete)	495 lbs Tension, 675 lbs Shear

This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation.
