Drop-In Anchor

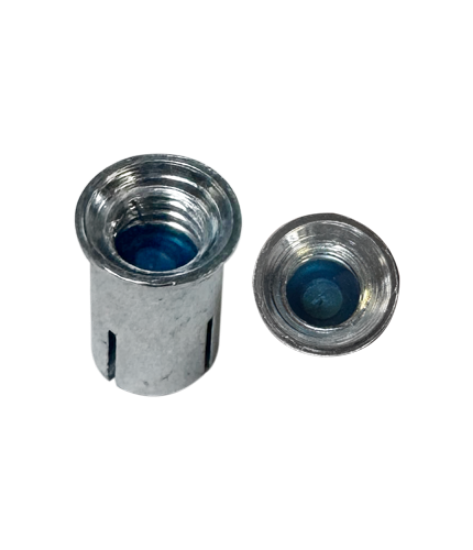

3/8-16" Shallow Embedment Steel Drop-In Anchor, Includes Setting Tool, Zinc Plated

SKU: 60405

Product Status: Active

UPC: 08593760405

UNSPSC: 31162101

Country of Origin: CHINA

Packaging: Corrugated

Package Quantity: 100

Master Carton Quantity: 1000

Brand Name	Minerallac
Sub Brand	Cully
Type	Steel Drop-In Achor
Size	3/8"-16
Diameter	0.375"
Minimum Embedment Depth	0.750"
Thread Type	Internal Threads
Thread per Inch	16
Drill Size	1/2"
Material	Steel
Finish	Zinc Plated
Suitable Base Materials	Normal Weight Concrete, Lightweight Concrete, Precast Hollow Core Plank, and Concrete Over Steel Deck
Rod/ Anchor Diameter	3/8"
Outside Diameter	1/2"
Overall Length	3/4"
Minimum Embedment Depth in.	3/4"
Ultimate Tension Strength (3,000 PSI)	1,980 lbs
Ultimate Shear Strength (3,000 PSI)	2,700 lbs
Allowable Tension Strength (3,000 PSI)	495 lbs
Allowable Shear Strength (3,000 PSI)	675 lbs
Special Features	Shallow Embedment Anchor
Application	A carbon steel machine bolt anchor designed for use in shallow embedment applications.
Benefits/ Features	Interally threaded anchor for easy bolt removability and service work, ideal for precast hollow core plank and post-tensioned concrete slabs, lip provides flush installation and consistent embedment, Manual setting tool scores flange when set to verify proper expansion depth

This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation.
