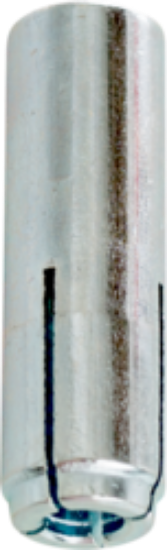

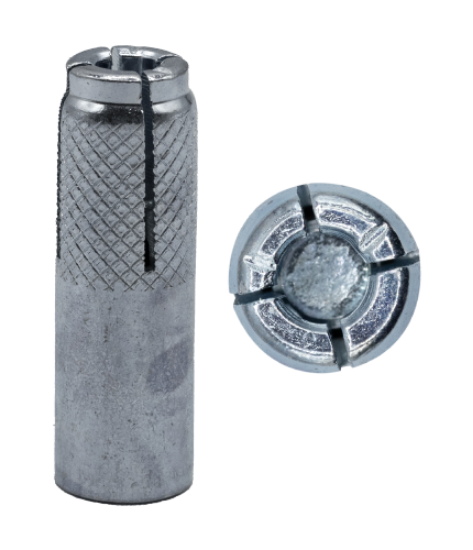

Drop-In Anchor

3/8-16 x 1-9/16" Steel Drop-In Anchors, Includes Setting Tool, Zinc Plated,Jar

SKU: 60404USJ

Product Status: Active

UPC: 08593705804

UNSPSC: 31162101

Country of Origin: USA

Packaging: Jar

Package Quantity: 100

Master Carton Quantity: 600

Brand Name	Minerallac
Sub Brand	Cully
Type	Steel Drop-In Achor
Size	3/8"-16 x 1-9/16"
Diameter	0.375"
Length	1.563"
Minimum Embedment Depth	1.625"
Thread Type	Internal Threads
Thread Length	0.625"
Thread per Inch	16
Drill Size	1/2"
Material	Steel
Finish	Zinc Plated
Minimum Concrete Compresive Strength	2,000
Minimum Concrete Compressive Strength	4,000
Ultimate Tension/lbs	2,000
Shear/lbs	3160
Uses	Suspending conduit, concrete formwork, fire sprinkler supports, pipe supports, cable trays and strut, suspended lighting
Rod/ Anchor Size	3/8"
Ultimate Load Capacities (2000 PSI Concrete)	2180 lbs Tension, 4585 lbs Shear
Allowable Load Capacities (2000 PSI Concrete)	545 lbs Tension, 1145 lbs Shear
Application	Steel Drop-In Anchor is an all steel anchor for us in solid concrete, lightweight concrete, and concrete-filled steel deck members. The anchors can also be considered for hand stone and solid block base materials.
Overall Length	1-9/16"
Outside Diameter	1/2"

This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation.
