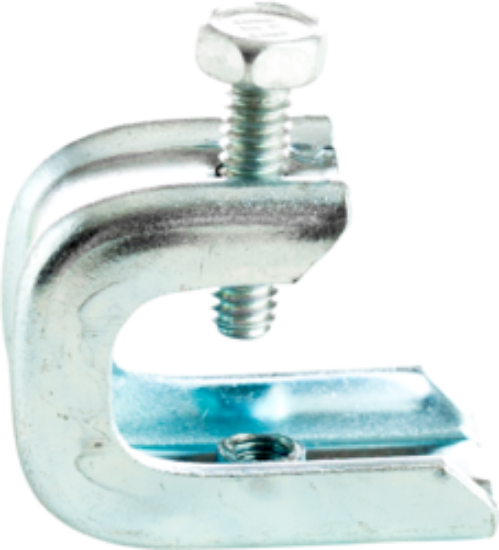

Beam Clamp

Set Screw Beam Clamp (Steel), Fits Up to 3/4" Flange, 3/8"-16 Tapped Holes Bottom and Back of Beam Clamp, Zinc Plated

SKU: 602B

Product Status: Active

UPC: 78461024603

UNSPSC: 31162905

Country of Origin: USA

Packaging: Corrugated

Package Quantity: 25

Master Carton Quantity: 25

Brand Name	Minerallac
Sub Brand	Minerallac Traditional
Type	Beam Clamp
Application	For use with Minerallac conduit hangers #0 to #5, bridal rings, and threaded rod.
Special Features	Case hardened steel set screw tapped at an angle locks on beam.
Material	Steel
Maximum Load	200
Size	2.00" x 1.20" x 2.20"
Finish	Zinc Plated
Torque Rating	60
Clip Type	Flange Clamp
Length	1.20"
Width	2.20"
Color	Silver
Maximum Clamp Diameter	3/4"
Set Screw	5/16"-18 x 1-3/8"
Flange Width	3/4"
Rod Size	3/8"
Material Of Construction	Steel
Gauge	11

This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation.
