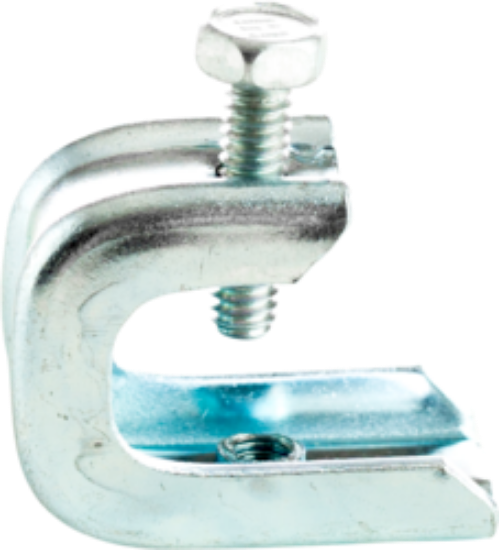

Beam Clamp

Set Screw Beam Clamp (Steel), Fits Up to 1/2" Flange, #10-24 Tapped Holes Bottom and Back of Beam Clamp, Zinc Plated

SKU: 60010

Product Status: Active

UPC: 78461024601

UNSPSC: 31162905

Country of Origin: USA

Packaging: Corrugated

Unit of Measure: C

Package Quantity: 50

Master Carton Quantity: 50

Brand Name	Minerallac
Sub Brand	Minerallac Traditional
Type	Beam Clamp
Special Features	Case hardened steel set screw tapped at an angle locks on beam.
Material	Steel
Maximum Load	75
Finish	Zinc Plated
Color	Silver
Flange Width	1/2"
Material Of Construction	Steel
Torque Rating	40
Clip Type	Flange Clamp
Width	0.85"
Maximum Clamp Diameter	1/2"
Set Screw	1/4"-20 x 1"
Gauge	0.089"
Application	For use with Minerallac conduit hangers #0 to #5, bridal rings, and threaded rod.
Size	1.40" x 0.85" x 1.65"
Length	1.65"
Rod Size	#10-24

This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation.
