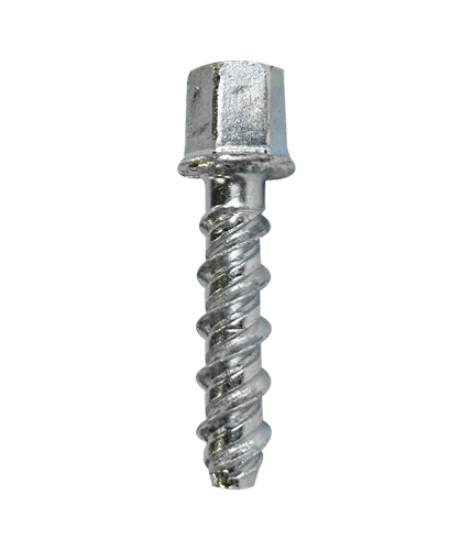

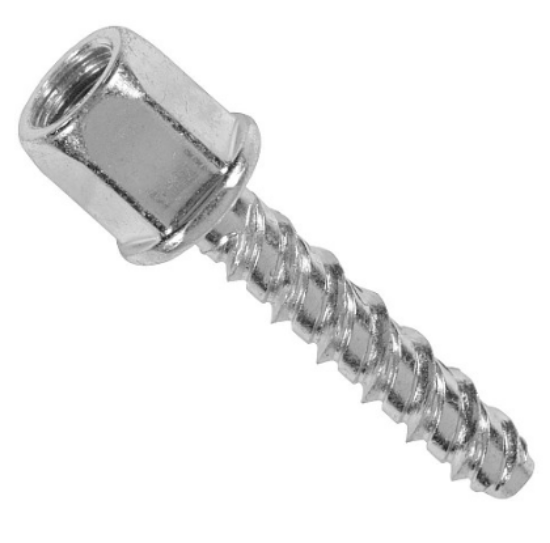

Rod Hanger

3/8-16 Vertical Rod Hanger, Installs Vertically Into Concrete Structures For Hanging Threaded Rod.

SKU: 59678J

Product Status: Active

UPC: 08593705008

UNSPSC: 31161502

Country of Origin: TAIWAN

Packaging: Jar

Package Quantity: 50

Master Carton Quantity: 300

Brand Name	Minerallac
Sub Brand	Cully
Type	Concrete vertical rod hanger
Material	Zinc plated carbon steel
Application	Installs vertically in concrete for hanging threaded rod
Internal Thread Size	3/8-16
Length	1-1/2
Ultimate Load Capacity	1,760 Tension lbs in 2000psi Normal Weight Concrete
Ultimate Load Capacity	1,760 Tension lbs in 2000psi Normal Weight Concrete
Appliation	Threaded fastening system for suspending steel threaded rod vertically in concrete fixtures
Rod Size	3/8"-16
Requirements	Requires a pre-drilled 1/4" hole, Minerallac Item 59986
Thread Size	1/4" x 1-1/2"
Ultimate Load Capacities (2000 PSI Concrete)	1760 lbs Tension, 2580 lbs Shear

This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation.
