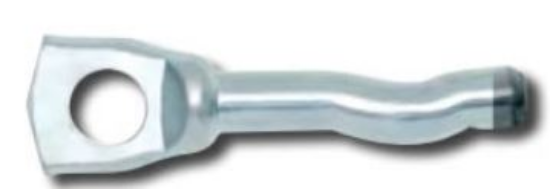

Hammer Drive Anchor

1/4 Tie Wire Drive Anchor, Zinc Plated, Jar

SKU: 59180J

Product Status: Active

UPC: 08593705445

UNSPSC: 31162107

Country of Origin: CHINA

Packaging: Jar

Package Quantity: 100

Master Carton Quantity: 600

Brand Name	Minerallac
Sub Brand	Cully
Minimum Embedment Depth	1-1/8"
Drill Size	1/4"
Material	Carbon Steel
Finish	Zinc Plated
Tie Wire Hole	9/32
Ultiamte Load Capacities (3000 PSI Concrete)	1075 lbs Tension, 1310 lbs Shear
Type	Tie Wire Anchor
Application	Designed for suspended ceilings the tie wire spike anchor is a one-piece vibration resistant anchor for us in concrete, block, or stone. The spike anchor is designed with an "s" shape at the working end of the anchor to create an expansion mechanism. No secondary tightening operation required.
Size	1/4 x 1-3/4
Anchor Size	1/4" x 1- 1/4"
Allowable Load Capacities (3000 PSI Concrete)	270 lbs Tension, 330 lbs Shear

This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation.
