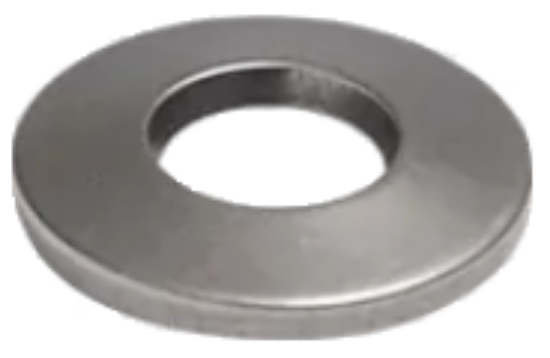

Picture of Belleville Washer

Belleville Washer

1/2" Belleville Washer, Heavy Duty, Spring Steel, Carton

SKU: 40925HDBFG

Product Status: Active

UPC: 08593707436

UNSPSC: 31161825

Country of Origin: USA

Packaging: Corrugated

Unit of Measure: C

Package Quantity: 1500

Master Carton Quantity: 1500

Products specifications

Brand Name	Minerallac
Sub Brand	Cully
Type	Specialty Washers
Finish	Zinc Plated
Material	Spring Steel – AISI 6150
ID (Min)	0.515"
Fits Bolt Sizes	1/2"
OD (Max)	1.125”
THK Nom	0.125"
OH Ref	0.142"
Def Nom	0.017"
Torque FT	64.2 ft/lbs
LBS F 100%	7700
Flat Load LL	6930
Flat Load UL	8470
APW (Each)	0.02779

Download Spec Sheet

Product compliance

Buy America Act	Yes
Buy American Act	Yes
FTC Compliant	No
RoHS	Yes

Prop65 Compliance

This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation.
